Outdoor LCD Digital Signage-LCD Video Wall Manufacturer-Marvel Technology

Home > Products > Outdoor LCD Digital Signage

Model Number: MWE896 Outdoor Waterproof Digital Signage advertising player

  • Model Number:   MWE896
  • Brand Name:   Marvel
  • Certification:   CE FCC ROHS
  • Place of Origin:   Shenzhen, China
  • Application:   Outdoor
  • Input Voltage:   AC100~240V 50 /60 HZ
  • Packaging:   Bubble bag+packing foam+carton+wooden case
  • Delivery Detail:   Batch order 15-30 days

  1. Specification
  2. Detailed
  3. Contact

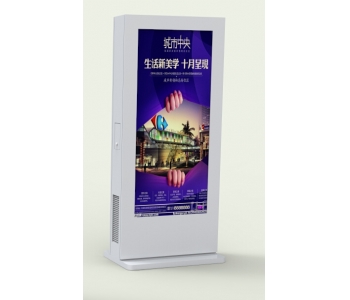

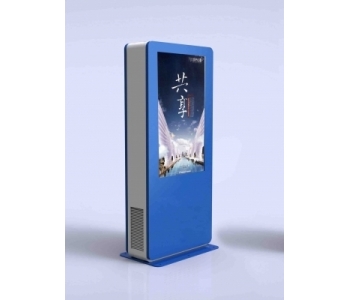

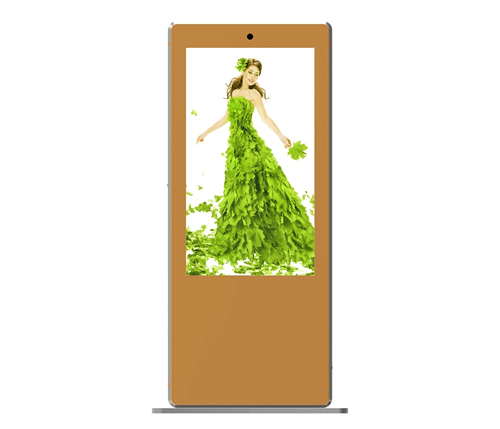

 Stand Alone Outdoor Waterproof Digital Signage advertising player



Detailed Product Description



Available Sizes:  19" ~86"

(Option)Can pass the IK10 anti-collision level test;

High visibility、anti-reflection;

(Option)Supporting marvel outdoor LCD maintenance cloud(OMC)control.

(Option)Polarzed sunglasses supporting

(Option)can supporting UV cut off and IR blocking.



Outdoor OMC system (outdoor maintenance and management cloud software system):



1.Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).

2. Problem and staus monitoring software included.

3.Touble shooting by software included.

4.Use softwae Remote Check key working performance by Group

5.Unnormal work alarm generation.



Control interface supporting:



1. RS232  Marve provide API and instruction protocol.

2. TCP/IP  Marvel provide technical supporting.



Cloud service supporting:



1.CMS :http://inf.marveltechgroup.com

2.OMC:http://omc.marveltechgroup.com

3.Marvel can support to help Customer to setup their own server.



Model

MWE896 PC Version

MWE896 Android Version









Screen

Panel Brand

Samsung & LG Full New 100% A+ Grade Brand Panel

Panel size

 46" (43"~75")

Display size

572mm(V)×1018 mm(H)

Display ratio

16:9

Resolution

1080*1920

Viewing angle

89/89/89/89 (Min.)(CR≥10)

Color

16.7M

Back light

LED

Brightness

2500 cd/m2

Contrast ratio

3000:1







OS System

main board:i5-3317U(optional)

CPU:RK3288(optional)

RAM:4G,SSD:128G(optional)

RAM:2G,EMMC:8G(optional)









Operation

Windows 7(optional,win8,win8.1,win10)

Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2)

Connection to network

RJ45,  WIFI (4G,optional)

RJ45,  WIFI (4G,optional)





Touch Screen

system



Touch screen

resistive, capacitive



resistive, capacitive



Touch ways

finger,touch pen

finger,touch pen

Touch dots

10dots (optional,20dots,40dots)

10dots (optional,20dots,40dots)

Durability

More than 50 million touch

More than 50 million touch



Power

Power

330W

330W

Voltage

AC100-240V 50/60HZ

AC100-240V 50/60HZ

Stability

good

good







Instructions

Interface

VGA/HDMI/USB

HDMI/USB/SD

Working

temperature

-30°C ~ 60°C(with air conditioner)
-10°C ~55°C(with fan cooling)
-30°C ~ 55°C(with fan cooling+heater)

-30°C ~ 60°C(with air conditioner)
-10°C ~55°C(with fan cooling)
-30°C ~ 55°C(with fan cooling+heater)


Material

Aluminum alloy,tempered glass

Aluminum alloy,tempered glass

Surface

Spraying,frosted aluminum

Spraying,frosted aluminum

Size

Undetermined

Undetermined

Weight

Undetermined

Undetermined



Body

Shell

Galvanized   steel sheet. Thickness:2mm.

Color

Black , white , silver or customized colors

Packing

By carton, wooden case, flight case (optional)



Optional Functions

Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof

3G/4G  Capability

Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor

Fan, temperature and light sensor




TAG:  Outdoor Digital Signage   LCD Advertising Display   Waterproof LCD Advertising Display   LCD Digital Signage
