Model Number:MWE662 Taxi top Strip Dual Side Outdoor P2 P0.4 lcd display high brightness digital signs

  • Model Number:   MWE662
  • Brand Name:   MARVEL
  • Certification:   CE FCC ROHS ISO IP65
  • Place of Origin:   Shenzhen, China
  • Application:   Outdoor
  • Input Voltage:   AC100~240V 50 /60 HZ
  • Packaging:   Bubble bag+packing foam+carton+wooden case
  • Delivery Detail:   Batch order 15-30 days

  1. Specification
  2. Detailed
  3. Contact

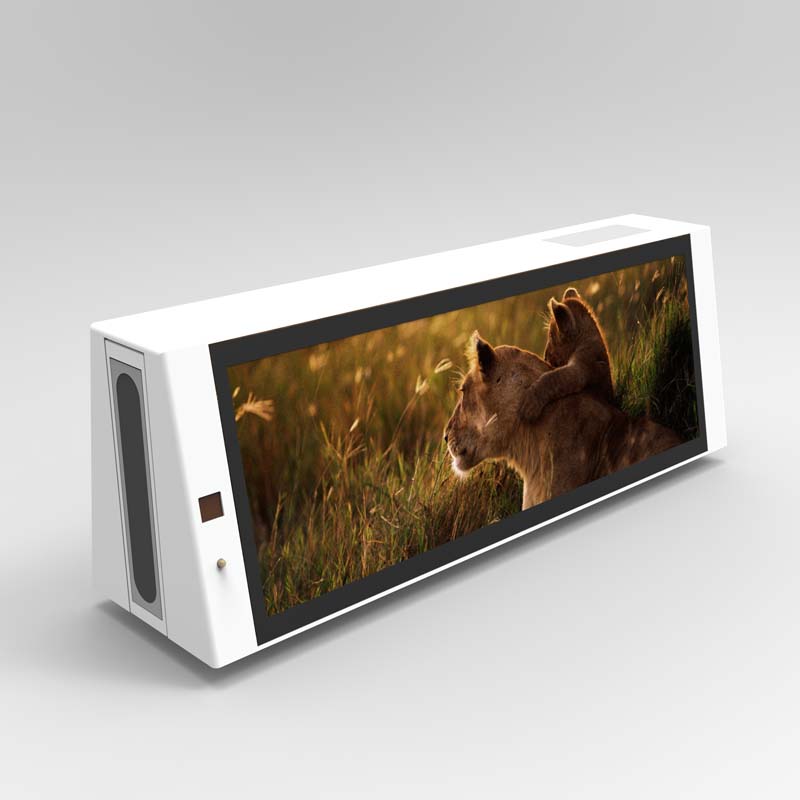

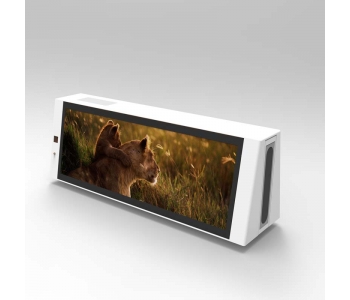

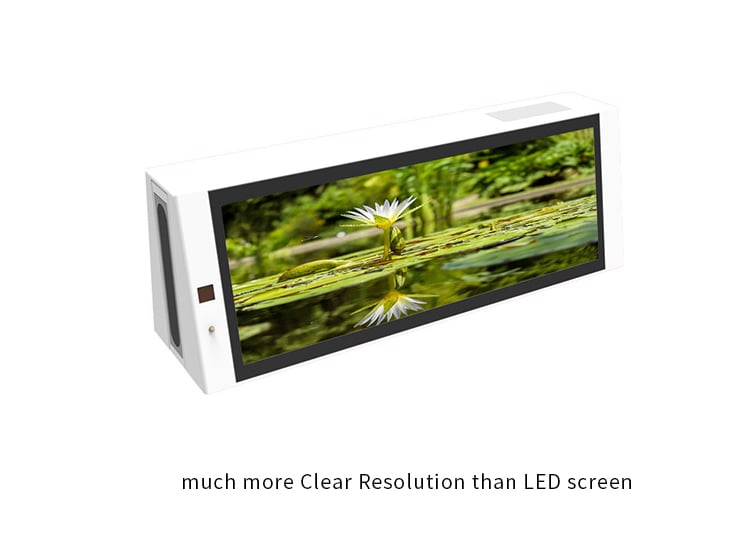

Model Number:MWE662- TAXI TOP Strip Dual Sided Outdoor LCD Display with OMC



Model
Windows Version
Android Version
Screen
Panel Brand
Full New 100% A+ Grade Brand Panel

Panel Size
40 inch

Display Size
930mm(H)x 325mm(V)

Display Ratio
16:9

Resolution
1920*1080

View Angel
178°/178° (H/V)

Color
16.7M

Backlight
LED

Brightness
3500nits

Contrast
1500:1
OS System
Standard Main Board: Celeron J1900
Standard Main Board: RK3288

RAM
4G
RAM
2G

Hard Disk
128G SSD
Storage
8G

Network
LAN&WIFI
Network
LAN&WIFI

OS Version
Win7/8/10
OS Version
5.1/6.0/7.1

3G/4G function are optional
Touch Screen System
Multi point PCAP touch screen
Power Instructions
Power Consumption
130W
Power Consumption
120W

Voltage
AC 100-240V
50/60Hz
Voltage
AC 100-240V
50/60Hz

Temperature
0-50 ℃
Temperature
0-50 ℃

Material
Metal Sheet, Temper Glass
Material
Metal Sheet, Temper Glass

Surface
Powder Painting
Surface
Powder Painting

Size
1028*632*845mm
Size
1028*632*845mm

Weight:
133KG
Weight
133KG
Outer shell:
1. IK10 and IP65 level outer shell is made by galvanized sheet.
2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness)
on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an
anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outer shell,vandal proof.
Security Configuration
1.Battery of car power protection: 1 low voltage protection and 1 timer protection
2.Alternator protection:1 set low voltage protection.
3.Aditional 1 minute fast cooling system for when power on after high soloar exposure.
4. Environment camera (if needed, addtional costs: $30)
5. Filter block percentage detection sensor.
6. Door open sensor
7. Human sensor and warning with people photos upload.
Outdoor OMC system (outdoor maintenance and management cloud software system):
1. Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor,
humidity sensor, temperature sensor, vibration
sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3. Touble shooting by software included.
4. Use softwae Remote Check key working performance by Group
5. 5.Unnormal work alarm generation.                                                                                          6.CMS supports Taxi in different location play different content.
Control interface supporting
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.
Cloud service supporting
1. CMS :http://inf.marveltechgroup.com
2.OMC:http://omc.marveltechgroup.com
3.Marvel can support to help Customer to setup their own server.
Working Environment
-10°C~50°C
Power supply
Car generator 12V power supply




TAG:  Ultra Wide Stretched Bar LCD Advertising Display
