MWE897 Dual-Screen Outdoor Advertising Display | 43″ × 2, 2500-Nit IP66/IK10 Digital Signage Totem
- Model Number: MWE897 Dual-Screen
- Brand Name: MWE
- Certification: CE / FCC / RoHS
- Place of Origin: Shenzhen, Guangdong, China
- Application: Outdoor Advertising / Drive-Thru / Retail / Transportation / DOOH
- Input Voltage: AC 100–240V, 50/60Hz
- Packaging: Export Carton + Wooden Case; Flight Case Optional
- Delivery Detail: To be confirmed based on order quantity and customization requirements
Provide 1-3 Years Warranty

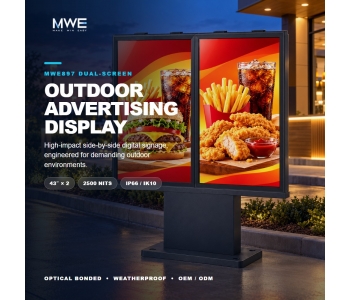

The MWE897 Dual-Screen is a 43-inch ×2 outdoor advertising display designed for drive-thru, retail, transport and public-space DOOH. Each 2500-nit Full HD panel uses optical bonding and anti-glare glass, while the IP66/IK10 enclosure, Android 11 player and OMC remote monitoring support reliable outdoor operation.

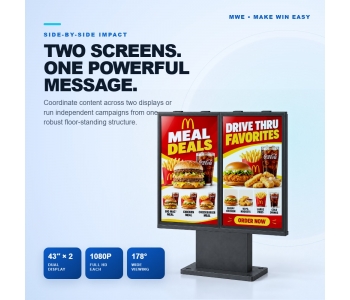

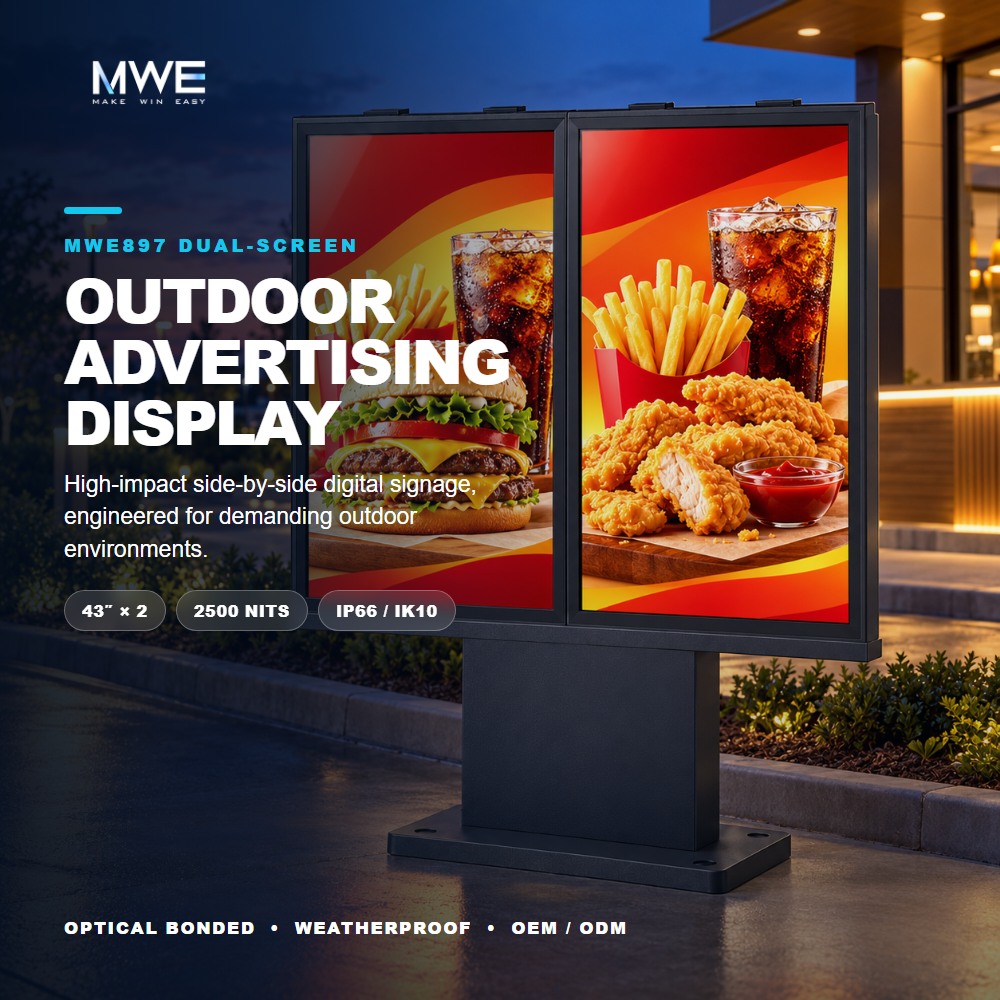

The MWE897 Dual-Screen Outdoor Advertising Display combines two side-by-side 43-inch high-brightness LCD panels in one robust floor-standing structure. It gives drive-thru operators, retailers, transport facilities and DOOH networks more display area for promotions, menu content, wayfinding and public information.

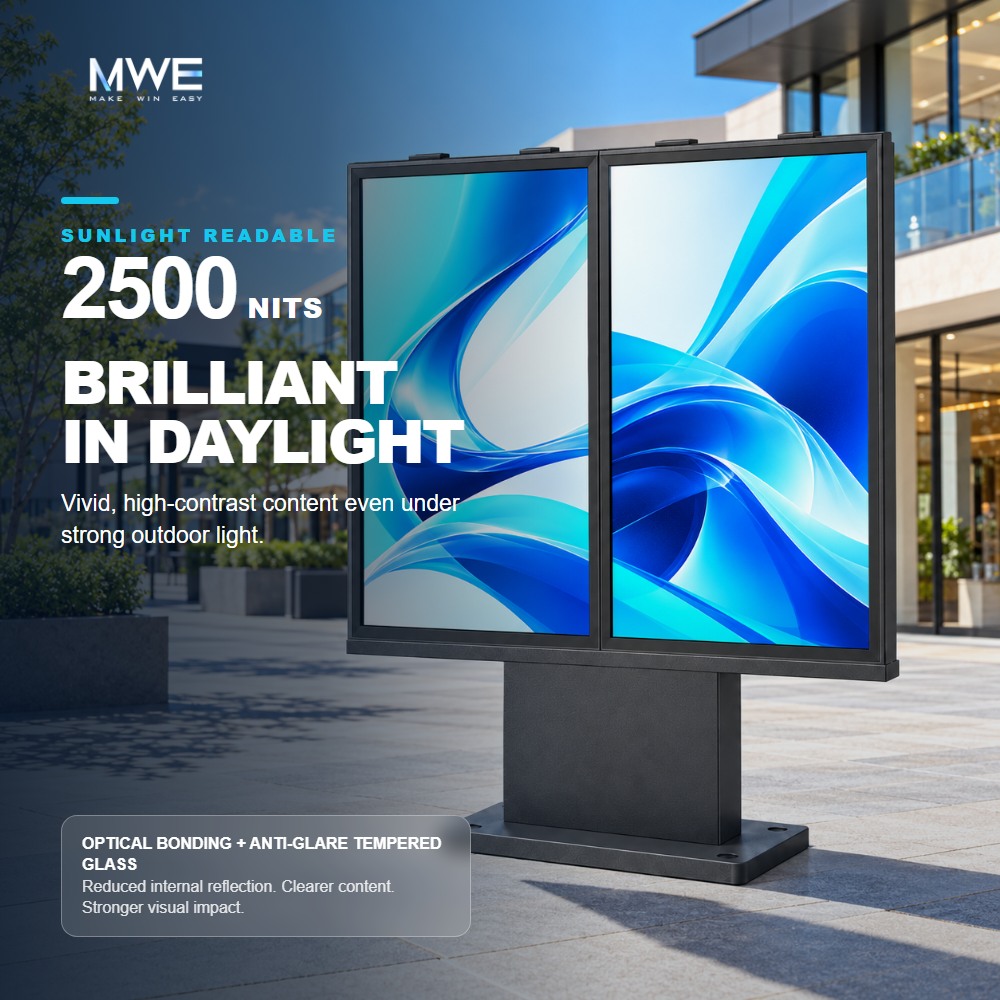

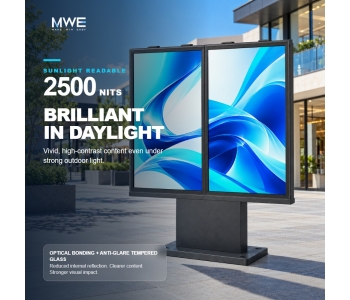

2500-Nit Sunlight-Readable Performance

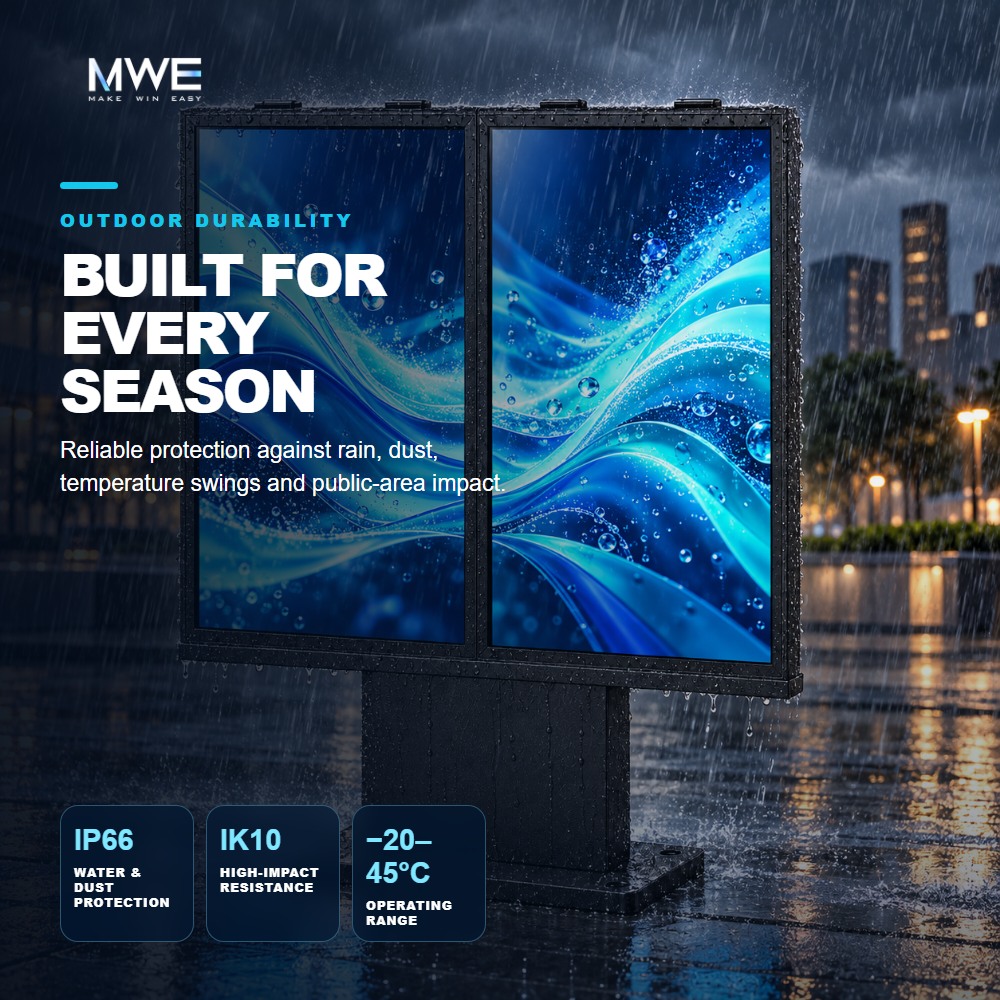

IP66 Weatherproof and IK10 Impact-Resistant

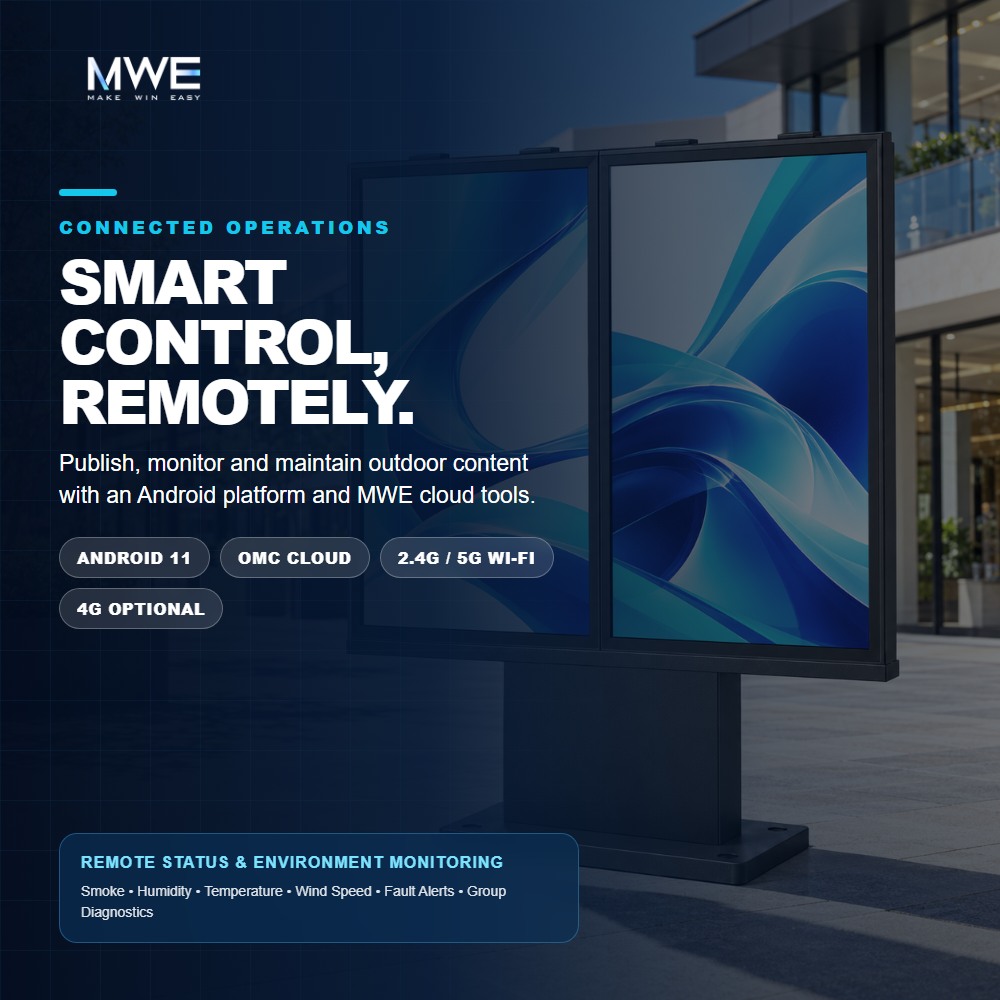

- Remote device status and fault alerts
- Temperature, humidity, smoke and wind-speed monitoring
- Group-based device checks and diagnostics
- Remote content and system management
- Customer-server deployment and CMS integration
Flexible Connectivity for Commercial Projects

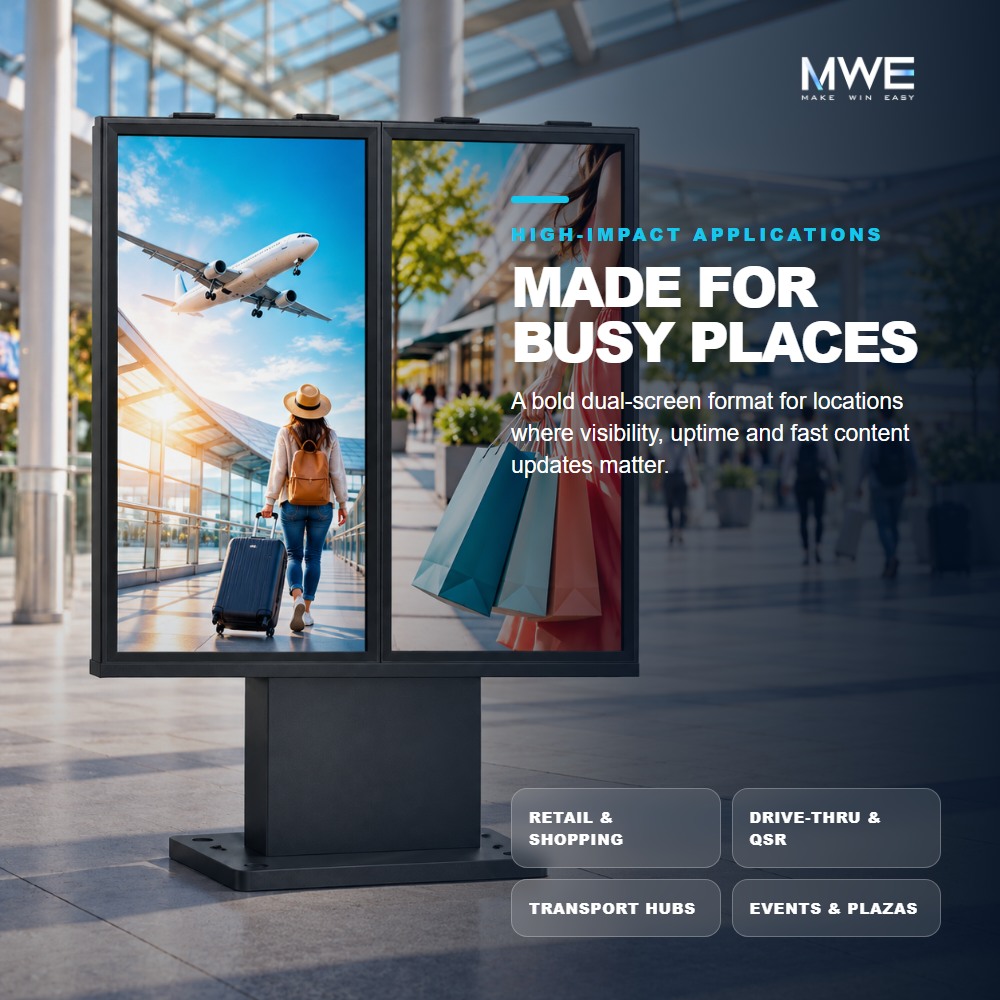

Designed for High-Impact Locations
The dual-screen format is suitable for locations where visibility, uptime and fast content updates matter, including:

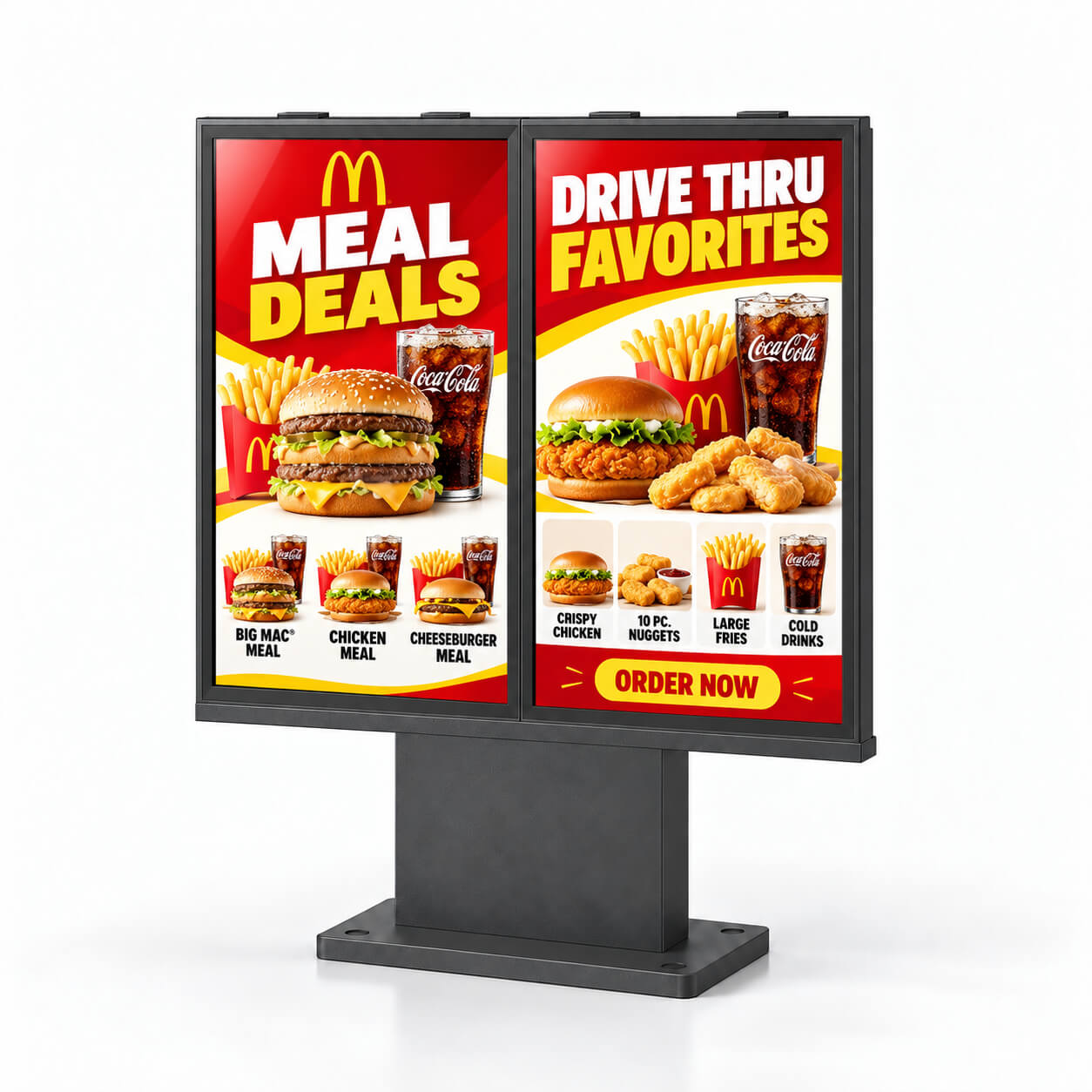

- Drive-thru lanes and quick-service restaurants
- High-street retail and shopping centers
- Airports, railway stations and transport hubs
- Outdoor events, exhibitions and public plazas
- Roadside and intersection DOOH advertising
- Commercial campuses and service facilities
OEM/ODM Customization
MWE provides OEM and ODM support for project-specific outdoor display requirements.
Key Specifications — Reference Dual-Screen Configuration
| Parameter | Specification |
|---|---|
| Model | MWE897 Dual-Screen |
| Display Configuration | 43-inch ×2, side-by-side |
| Native Resolution | 1920 × 1080 per screen |
| Backlight | Direct-lit LED |
| Brightness | 2500 nits |
| Backlight Lifetime | 50,000 hours |
| Contrast Ratio | 1200:1 typical |
| Display Color | 16.7 million colors, 8-bit |
| Viewing Angle | 178° total, typical |
| Front Glass | Anti-glare tempered glass |
| Bonding | Optical bonding |
| Protection Rating | IP66 / IK10 |

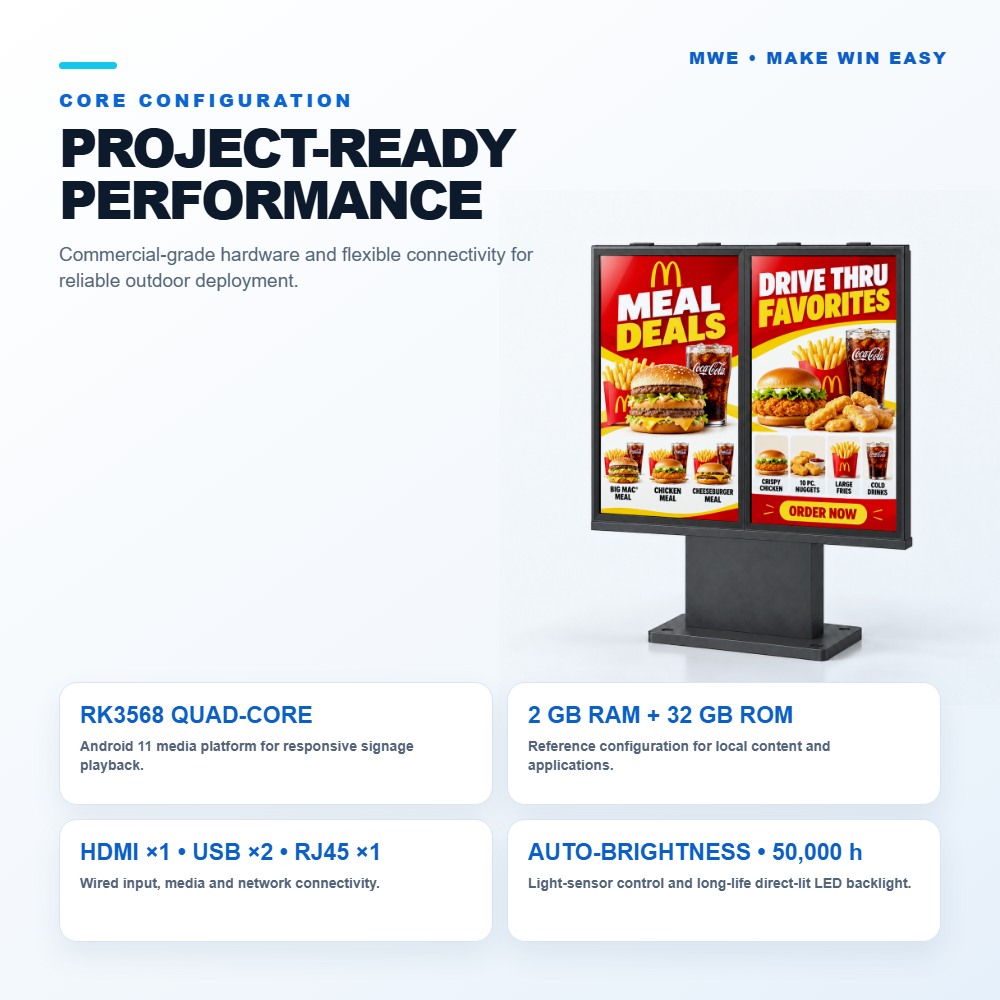

| Processor | RK3568 quad-core |
| Memory | 2 GB RAM + 32 GB storage |
| Operating System | Android 11 |
| Network | RJ45, 2.4G/5G Wi-Fi; 4G optional |
| Reference Inputs | HDMI ×1, USB ×2, RJ45 ×1 |
| Brightness Control | Built-in light sensor / auto-brightness |
| Speakers | 8 Ω, 5 W ×2 |
| Operating Temperature | −20°C to 45°C |
| Storage Temperature | −25°C to 60°C |
| Operating Humidity | 10%–100% RH, non-condensing |
| OMC Monitoring | Smoke, humidity, temperature and wind speed |
| Cabinet Color | Grey RAL7016; custom colors available |
| Orientation | Landscape dual-screen arrangement shown; other project configurations on request
FAQ
Is the MWE897 Dual-Screen readable in direct sunlight?
Yes. The reference configuration uses 2500-nit high-brightness panels, optical bonding and anti-glare tempered glass to improve outdoor visibility. A built-in light sensor supports automatic brightness adjustment.

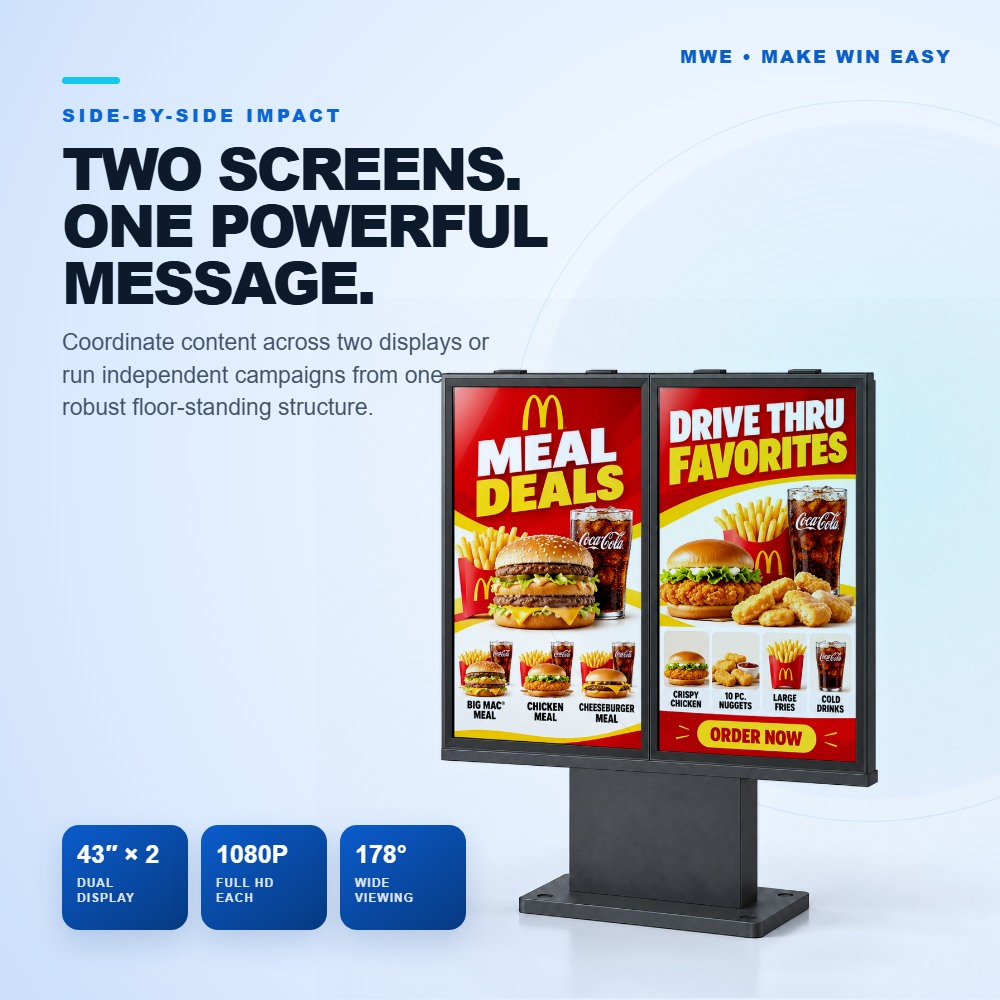

Can the two screens show different content?
The display can be configured for coordinated or separate content playback, depending on the selected Android player, signal architecture and CMS setup. Confirm the required playback mode when requesting a quotation.
Is the display suitable for permanent outdoor installation?
The enclosure is designed around IP66 weather protection and IK10 impact resistance. Site engineering, foundation design, electrical protection and local installation requirements should still be confirmed for each project.
What network connections are available?
The reference configuration supports RJ45 Ethernet and 2.4G/5G dual-band Wi-Fi. Optional 4G connectivity can be added for sites without a fixed network connection.
Can MWE customize the cabinet and software?
Yes. OEM/ODM options include enclosure color, branding, mounting, brightness, protective glass, media-player configuration, CMS integration and customer-server deployment.
Call to Action
Build the Dual-Screen Display Around Your Project
Tell us your installation location, screen-content requirements, network environment and expected quantity. MWE will recommend the appropriate brightness, enclosure, player, connectivity and CMS configuration for your project.
Request a free quotation and customized specification for the MWE897 Dual-Screen Outdoor Advertising Display.
Up to a 3-year warranty and global project delivery are available according to the final order configuration.
