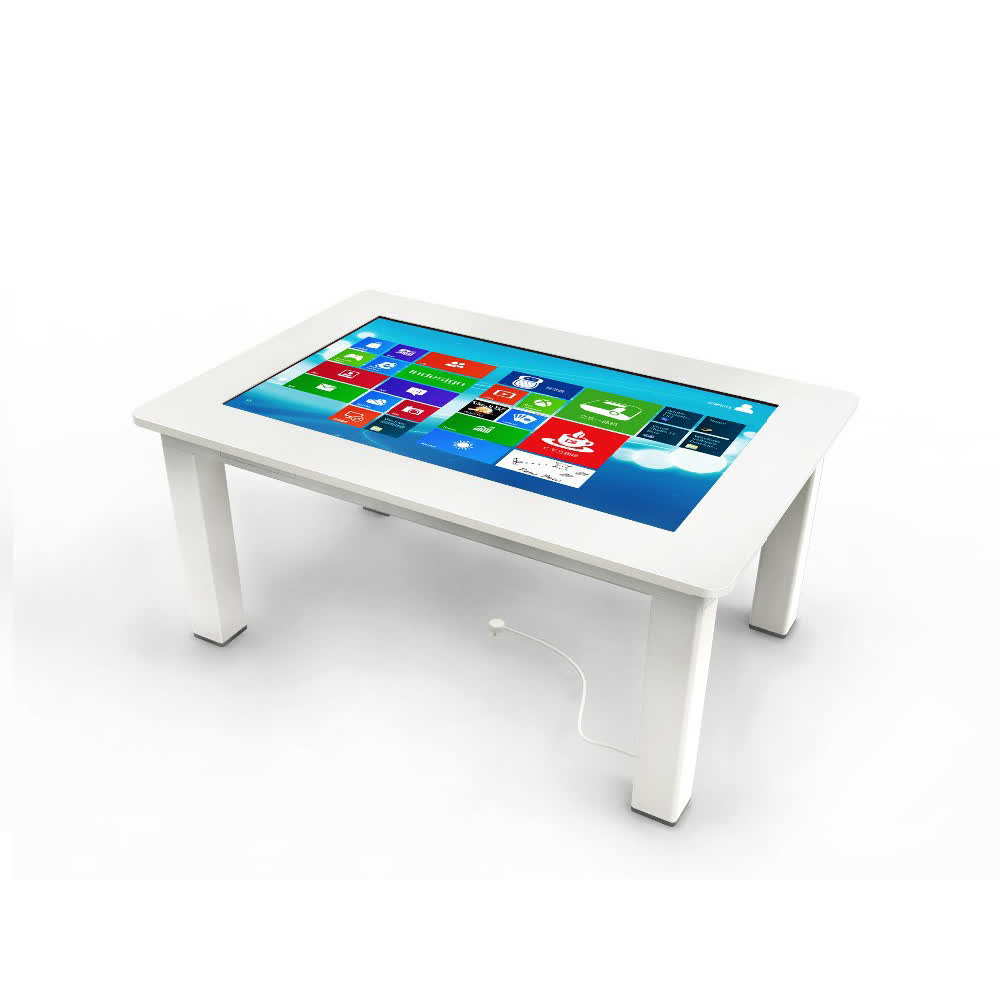

Model Number: MWE894 Multi Points IR Touch Ineractive Multimedia Touch Screen Table

Model

MWE894 PC Version

MWE894 Android Version

Screen

Panel Brand

Samsung & LG Full New 100% A+ Grade Brand Panel

Panel size

32"

Display size

700mm (H) x 392mm (V)

Display ratio

16:9

Resolution

1366X768

Viewing angle

178°/178°(H/V)

Color

16.7M

Backlits

LED

Brightness

450 cd/m2

Contrast

5000:1

OS System

Standard:main board:G61 CPU:G620

CPU:A10  1.8 Single-core

RAM:KINSTON2GB  Hard disk:500GB

RAM:8G

Superior:main board:G61 CPU:I3 2120

RAM:KINSTON 4GB  Hard disk:500GB

Operation

Windows 7

Android 4.2(can be upgraded)

Connection to network

RJ45, 3G, WIFI (optional)

RJ45 ,3G,WIFI (optional)

Touch Screen

system

Touch screen

Infrared touch screen

(touch foil, capacitive)

Infrared touch screen

(touch foil, capacitive)

Touch ways

finger,touch pen

finger,touch pen

Touch dots

1/2/4/6 dots (optional)

2 dots

Durability

More than 50 million touch

More than 50 million touch

Power

Power

140W

120W

Voltage

AC100-240V 50/60HZ

AC100-240V 50/60HZ

Stability

good

good

Instructions

Interface

VGA/HDMI/USB

HDMI/USB/SD

Working

temperature

-5°C-75°C

-5°C-75°C

Material

Aluminum alloy,tempered glass

Aluminum alloy,tempered glass

Surface

Spraying,frosted aluminum

Spraying,frosted aluminum

Size

Undetermined

Undetermined

Weight

Undetermined

Undetermined

Body

Shell

Galvanized   steel sheet. Thickness:1.0-1.5mm.

Color

Black , white , silver or customized colors

Packing

By carton with foam inside & woonden

Optional Functions

Anti-dazzle

3G  Capability

Human sensor

Fan, temperature and light sensor
