LG-55inch-1.8mm 700 nit LCD Video Wall Display
- Model Number: MPJ55LHX18
- Brand Name: MARVEL
- Certification: CE FCC ROHS
- Place of Origin: Shenzhen, China
- Application: Indoor
- Input Voltage: AC100~240V 50 /60 HZ
- Packaging: Bubble bag+packing foam+carton+wooden case
- Delivery Detail: Batch order 15-30 days
.jpg)

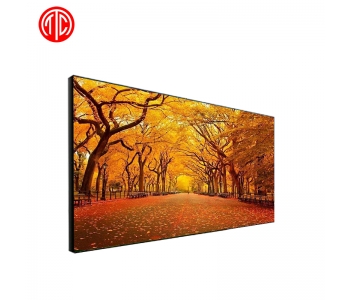

55 Inch Digital Video Wall
Detailed Product Description
Installation Types:Press and Eject viseo wall bracket, Wall Mounted, Floor standing, Cabinet floor satanding
|
Panel |
|
|
Panel Size |
55 inch 5.8mm(left-right-up),10.7mm(down) LG |
| Splice bezel | 1.8mm |
|
Aspect Ratio |
16:09 |
|
Max Resolution Support |
1920×1080(H×V) |
|
Color |
8Bit,16.7M |
|
Brightness (nits) |
450 nit |
|
Contrast ratio |
1100:1 |
|
Visual Angle (H/V) |
89/89/89/89 (Min.)(CR≥10) |
|
Response Time |
6ms |
|
Life(hrs) |
>60,000(hrs) |
|
Input and output |
|
|
DVI |
1 |
|
HDMI |
1 |
|
D-15 RGB Input(VGA) |
1 |
|
YUV/YPbPR |
1(3xBNC) |
|
S-(YC) |
1(2xBNC) |
|
Composite Video Input/(AV) |
3(3xBNC) |
|
Composite Video Output |
2(2xBNC) |
|
AUDIO INPUT |
1 |
|
Split Screen |
Support Picture in Picture(PIP/POP/PAP) |
|
Power |
|
|
Power Supply |
AC100V~240V |
|
Maximum Power Consumption |
230W |
|
Standby Power Consumption |
<=3W |
|
Working Temperature |
-30°C ~ 60°C(with air condition）-10°C ~55°C(with air follow exchange）-30°C ~ 55°C(with air follow exchange+heater) |
|
Working Humidity |
20%-80% |
|
Dimension |
1215.3×686.1mmx131mm |
|
Video Wall Processor Controller |
|
|
Model No. |
MV-P817W |
|
DVI in |
1 |
|
HDMI in |
1 |
|
VGA in |
1 |
|
Composite Video Input/(AV) |
1(BNC) |
|
Composite Video Output |
1(BNC) |
|
Control signal input and loop out |
RS232(RJ45-8) |
|
Split Screen |
Sport Picture in Picture (PIP/POP) |
|
power consumption |
Max 300W,according to different Screen models |
|
Weight |
3.5-4.0kg |
